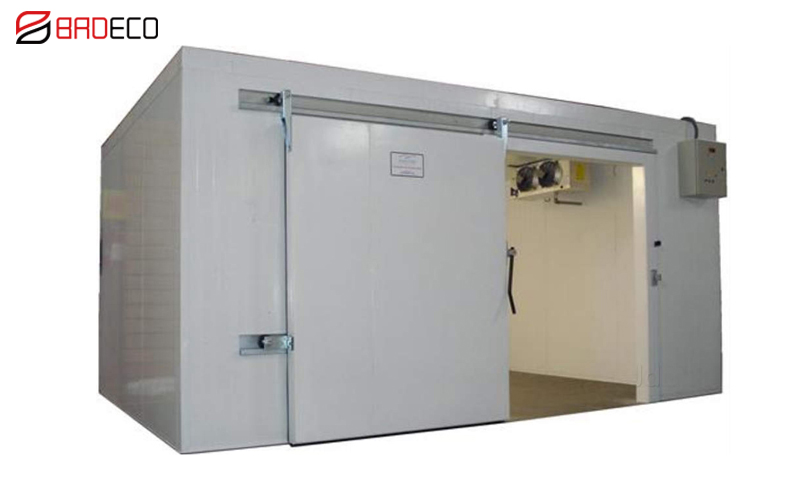

Frozen Fresh Keeping Cold Room

BRD cold rooms provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail.

PU/PIR/PUF Sandwich Panel

As a new material in structure, PU SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

Automatic Modern Garage Door

Garage Doors are made from a number of rigid sections/panels that are hinged together and move vertically in the opening, then horizontally along the ceiling, guided by tracks and counter-balanced with springs.

Industrial door

BRDECO’s industrial doors are built to provide reliable operation even in cold conditions. With top-class thermal insulation, the doors also work reliably in sub-zero temperatures.

CHARACTERISTICS

PU insulation core
Good heat insultion performence
Vertical or horizontal installation
Standard lengths are from 2 m to 10 m (max. 12 m)
Thickness of insulation core 30-300 mm

DESCRIPCTION

Cold Storage Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density polyurethane foam. Thanks to their good thermal insulation properties, it can be applied in projects that required very high heat insulation performanece, like cold storage, cool room ,freezer, refrigerating workshop construction.

Feature:

▲Energy saving

▲Thermal insulation

▲Design flexibility

▲Aesthetically pleasing

▲Meets health industry regulations

Panel Thickness	50, 75, 100, 125, 150, 200mm
Standard Facings	Steel sheet coated with polyester paint, 25µm Hign Zinc sheet with Zn 50 – Zn 180g Stainless steel
Core Material Density	40 [kg/m³] ±2kg/m³
Thermal Conductivity	0.022 [W/mK]
Acoustic Insulation	30 [dB]
Standard Length	2m-12m
Effective width	500-1150mm
Fire resistance	Non-flammable

APPLICATIONS

BRD cold room systems are designed for usage within temperature controlled and hygiene safe environments such as, food processing, deep freeze, cold,chill store and cold storage for meat, food and other industries.

★Cool Rooms

★Freezers Rooms

★Dual Temperature Rooms

★Laboratories cold rooms

★Proven rooms

★Cold Storage Facilities

★Warm rooms
