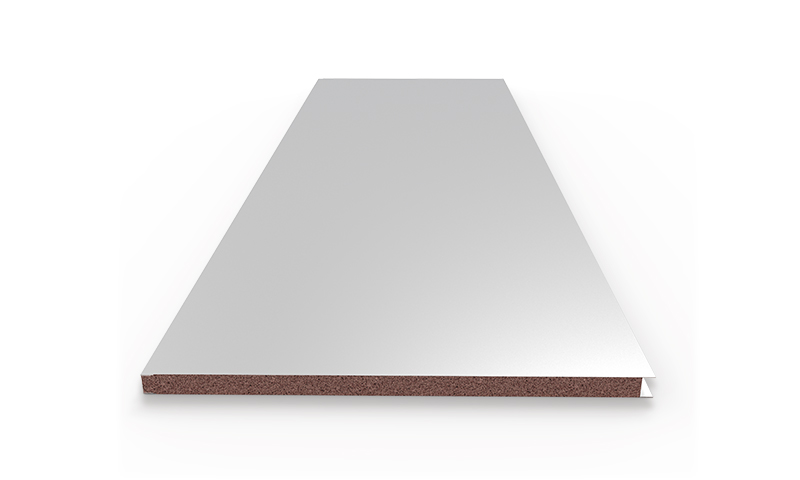

Description of Polystyrene Panels External Walls
Polystyrene Sandwich Panel also called EPS Sandwich Panel. The top & bottom Surface of this panel is Galvanized & pre-painted steel sheets, core material is polystyrene, it is
formatted by laminating and pressing with 2 components PU glue. The sandwich panel is featured with temperature keeping, hot & sound insulation, anti water and fire resistant.
It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.
Material - Galvalume Steel / Galvanized Steel / Aluminium
Thickness - 0.35mm to 0.70mm thick for Top skin and 0.35 to 0.50mm for Liner (Bottom Skin)
Colours - Bare Millfinish / off White/ Sky Blue / Royal Blue / Torres Blue / Mist Green / Cautfield Green / Brick Red / Shel Grey etc for Topskin and Pure White for Liner.
formatted by laminating and pressing with 2 components PU glue. The sandwich panel is featured with temperature keeping, hot & sound insulation, anti water and fire resistant.
It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.
Material - Galvalume Steel / Galvanized Steel / Aluminium
Thickness - 0.35mm to 0.70mm thick for Top skin and 0.35 to 0.50mm for Liner (Bottom Skin)
Colours - Bare Millfinish / off White/ Sky Blue / Royal Blue / Torres Blue / Mist Green / Cautfield Green / Brick Red / Shel Grey etc for Topskin and Pure White for Liner.
Specifications
| No | ITEMS | DESCRIPTION |
| 1 | Structures | -The upper and bottom sheets are respectively zinc-plated & color-coated steel sheets, thickness : 0,3-0,6mm-Core material: EPS, Density: 11-40 kg/m3. |
| 2 | Width | -Effective width 1000mm, width: 1030mm |
| 3 | Length | -Depend on customer requirement (<12m transport within) |
| 4 | Thickness | -Wall panel: 50mm, 75mm, 100mm, 150mm Roof panel: 50mm, 75mm, 100mm, 150mm |
| 5 | Color | -Blue, Ivory, White, Grey… |
| 6 | Applications | – Prefabricated house, Industrial sheds, Warehouses, Commercial complexes, indoor/outdoor stadiums, cold storage, buildings & indoor partitions etc |
Features of Polystyrene Wall Panels
Advantages of Polystyrene Wall Panels
- Major savings in energy cost.
- Light weight and easy installation.
- High standard of thermal insulation.
- Can be produced rapidly and on demand in the required quantity and length.
- Can be easily transported to wherever they are needed.
- Lower cost solution compared to traditional building materials.
- Saves construction and maintenance cost.
- Provides durability and long life.
Advantage
-
SUPER FLAME RETARDATIONThe coefficient of thermal conductivity is 0.023w/(m.k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits. -
ECONOMICALGreat flame retardation and the complete removal of cold bridges (during the rafter installation), do help reduce heating bills. -
DURABLEBRD PU sandwich panels are the most durable thermal insulating material in the construction industry. Under the normal maintenance, its service life is the same with buildings. -
ECOLOGICAL100% of the material is recyclable and the panels are friendly to the environment at the production and disposal stages. -
EASY AND QUICK INSTALLATIONCompared with traditional thermal insulation methods, BRD use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.
Application
PU sandwich panels are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure. Thanks to its hidden joint the panel ensures very aesthetic look of the wall or façade. In particular the panels can be applied in
-
Industrial buildings,
-
Store houses and logistic centres,
-
Commercial buildings and offices,
-
Food industry facilities,
-
Agricultural objects
-
Sport halls.
Factory Show
