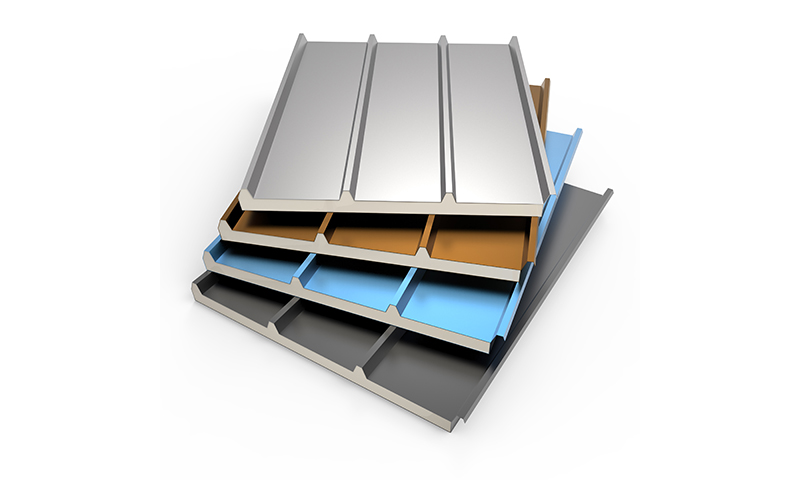

PU sandwich 4 wave roof panel from China Manufacturer-BRD

Description of PU Sandwich Panel

Specifications of PUF Roofing Sheets

Advantages of Polyurethane Sandwich Panel

Advantage

Categories

Sandwich Panel

PU sandwich panel EPS Sandwich Panel Rock Wool Sandwich panel Glass Wool Sandwich Panel

Metal Caving Wall Panel

Cold Room System

Cold Room Panel Cam Lock Cold Room Panel Cold Room Cold Storage Door

Clean Room System

Manual Clean Room Panel Mechanism Clean Room Panel

Insulation Board

TPS Board XPS Board PU/PIR Insulated Panel Rock Wool Board

Sectional Door

Garage Door Industrial Door Automatic Unloading Platform

Steel Structure

Light Steel Villa Container House Steel Coil Light Steel Steel Truss Deck Bridge Color Steel Sheet

Hot Rolled Steel

H Beam I Beam Angle Steel Channel Steel

Hot products

Frozen Fresh Keeping Cold Room

BRD cold rooms provide strong cooling for a variety of cold room sizes that cover applications ranging from medical lab storage rooms, food processing centers, walk-in coolers to drive-in distribution centers and others, which offer a wide range of solutions to preserve freshness, ensure safety and enhance the appearance of food and beverage retail.

PU/PIR/PUF Sandwich Panel

As a new material in structure, PU SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

Automatic Modern Garage Door

Garage Doors are made from a number of rigid sections/panels that are hinged together and move vertically in the opening, then horizontally along the ceiling, guided by tracks and counter-balanced with springs.

Industrial door

BRDECO’s industrial doors are built to provide reliable operation even in cold conditions. With top-class thermal insulation, the doors also work reliably in sub-zero temperatures.

Description of PU Sandwich Panel

PU sandwich panel, also known as polyurethane sandwich board, polyurethane composite panel and polyurethane energy-saving panel, is correctly said to be polyurethane thermal insulation sandwich panel for building.
This sandwich panel uses polyurethane rigid foam as the insulation layer, exterior and interior double-layer use color steel sheet, single-layer color steel sheet, stainless steel sheet, etc. it is usually used as the wall and roof enclosure system for industrial plant, logistics storage, integrated house.

Specifications of PUF Roofing Sheets

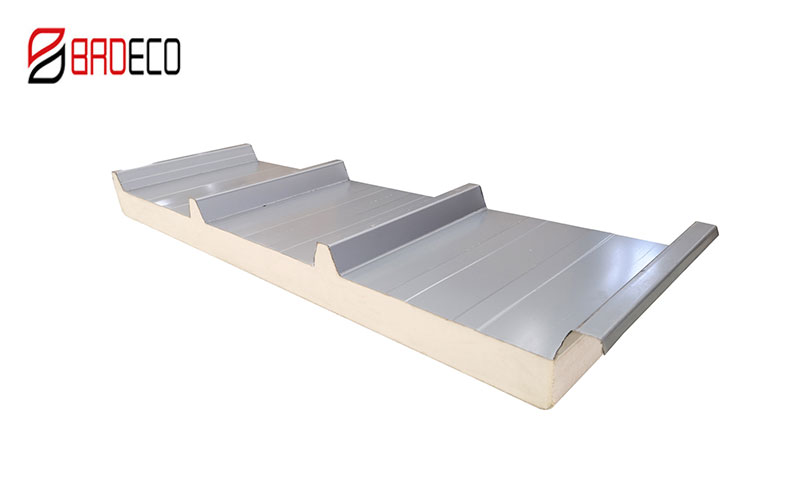

PU Sandwich Roof Panel
Structure	three layers:
	(1)upper layer is steel sheet,
	(2)the inner layer is PU sandwich,
	(3)the bottom layer is also steel sheet
Steel Thickness	0.4~0.7mm
Panel thickness	50--200 mm
Length	1-11.8m
Effective width	1000mm
Core material	polyurethane foam
Density	40--45(kg/m³)
color	Ral Color
Parts	Steel line for easy connect one by one Film covering in order to protect the steel of panels
Lifetime	20-35 years
Character	Light in weight, heat insulation, fireproof and waterproof,environmental
Usage	the large size factory buildings,storages, exhibition halls, gymnasiums ,etc
Packing	Packed by shipping Container or according to your demands

Advantages of Polyurethane Sandwich Panel

1) The composite board with low thermal conductivity is the best thermal insulation material because of its small thermal conductivity and good thermal insulation performance;
2) Beautiful board shape and convenient installation;
3) Polyurethane sandwich board has good fire resistance;
4) Polyurethane sandwich board is nontoxic and tasteless;
5) Waterproof and moisture proof.

Related Products

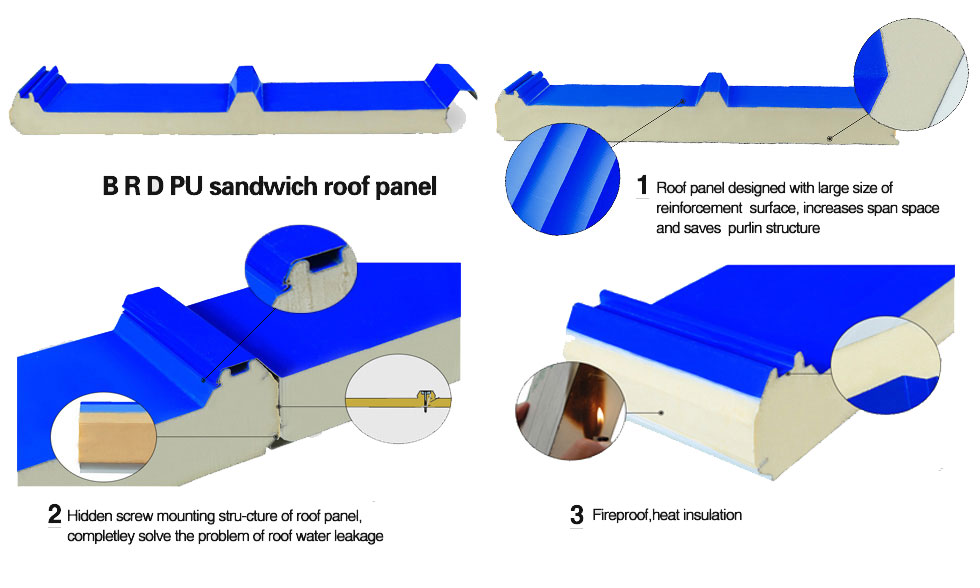

Advantage

Strong bearing capacity

Created exclusively 4 wave roof panel in China for the first time, more powerful for snow load.

Beautiful waterproof

Exclusively adopt the 3 wave roof, embedded installation, dark nail waterproof technology, easy installation, guarantee 100% hold water.

Super flame retardation

The coefficient of thermal conductivity is 0.023w/(m•k), which ensures better thermal insulation efficiency. In practice, this effectively keeps the building absorbing heat and brings enormous economic benefits.

Easy and quick installation

Compared with traditional thermal insulation methods, BRD use less material while the installation process is less time-consuming and labor-demanding leading to lower building costs.
