Rockwool Acoustic Board Rockwool Insulated Roof Panels

Rock wool sandwich panel is applicable to project with fairly high demand upon fire protection . The rock wool fibers plum to the color steel sheet plates . high density strip rock wool crisscross with the length of the color steel plates . All of this guaranteed the rock wool sandwich panel have a good bearing capability . Wall panel and roof tile has 50mm , 75mm , 100mm , 125mm , 150mm foam with 0.326mm , 0.4-0.6mm steel sheet widely use for prefabricated house, construction site, building, warehouse, worker camp, office ect .

It is low cost and thermal insulation , fireproof , sound insulation .The fix width of wall panel or roof tile has 1150 and 950mm , length is no limited but less than 12000mm because of the transportation . The surface metal coat could adopt galvanize aluminum steel sheet , galvanized aluminum zinc color steel sheet and the galvanized color steel sheet.

Panel characteristics	Panel thickness [mm]
	50	75		100		150	200
Functions	External walls partition walls internal ceilings cover objects insulation
Standard Facings	steel sheet coated with polyester paint, 25µm Aluminum sheet with Zn 50 – Zn 180g stainless steel
Steel thickness [mm]	0.4, 0.5, 0.6, 0.7, 0.8
Rock wool core material	density 100 / 120 kg/m³
Panel areal weight [kg/m²]	15.50	18.50		22.5		30.00	36.50
Thermal conductivity λD[W/mK]	0.043
Thermal transmittance U-value [W/m²K]	0,63	0,48		0,39		0,27	0,20
Acoustic insulation [dB]	27
Length [mm]	As customized
Effective width [mm]	1000mm(option 950,1150)
Fire resistance	-		EI 90 / E 120		E 120 / EW 60
Corrosion resistance	C1, C2, C3

Rock wool core material: the density of 120kg / m ; rock wool block staggered laying, the fiber direction perpendicular to the sandwich is still under the surface, and closely Detailed enrich the entire vertical and horizontal surface movement plate. And wool and, through the high intensity blowing agent connections between the lower plate is formed integrally between rock wool blocks. Sophisticated production process to ensure to produce high density rock wool insulation between the body and the metal plate inside the inner wall of strong adhesion, so that the rock wool sandwich panel has good stiffness.



Usage of Sandwich Panel Rockwool
Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets,  hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc.

• Our rock wool sandwich panel has the following characteristics: light dead weight, high mechanical strength, excellent shearing resistant performance, strong corrosion resistance, high durability, etc.
• 2. The sandwich panel has excellent insulating performance: heat insulation, sound insulation,  etc.
• 3. It is easy to install and can be used many times over.
• 4. Nowadays, the rock wool sandwich panel is widely used for cleaning workshops, industrial factory buildings, office buildings, stadiums, villas, and public buildings,prefabricated house etc.

COST SAVING & DURABILITY

The rock wool sandwich panel insulation stone wool is made from rock, making it naturally durable and stable over the lifetime of a building. As the unique physical structure, rock wool panel is not affected by changes in temperature or humidity. This means the owner can create a pleasant and stable temperature year after year, while saving energy and money for cooling/heating.

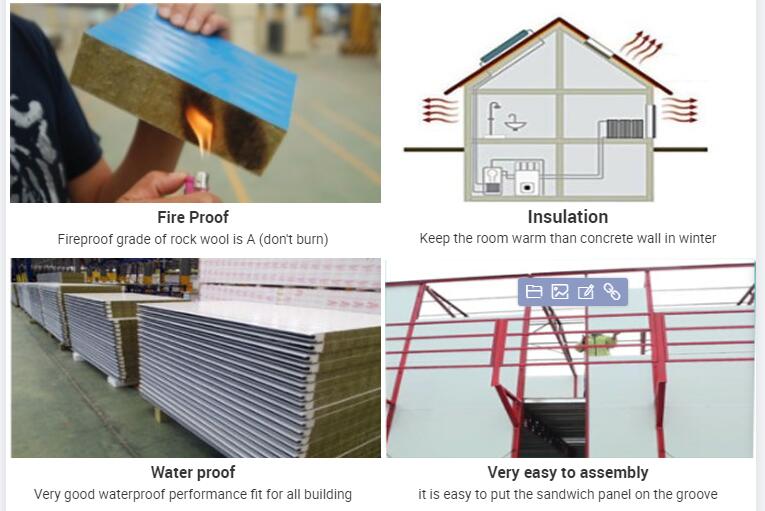

FIRE SAFETY

Have you ever seen rock burn? Neither have we. Rock Wool Panel Products are rated Non-combustible. Basalt stone wool adopted to Sandwich Panels is fire-protecting insulation material, it's fibers’ resistance to high temperatures, will limit the buildings to fire or spread. Using Rock wool sandwich panel will improve the building's fireproof performance, protect life and property safety.

SOUND INSULATION

Sound is tough to get through rock. Rock wool sandwiched panels are the most effective acoustic insulation used in construction. Installing Rock wool panel provides a real reduction in external noise, our rock wool panels allow builders to design the right acoustic environment for each space, whether it’s a workshop, concert hall, air clean room, or residential house.

FAST CONSTRUCTION

Rock wool sandwich panels and accessories are produced in full accordance with the building layout drawing, it is fast  and flexible to install on the construction site. The construction period can be shortened by more than 40%. Therefore, rock wool sandwich panel is ideal for fast constructed prefabricated buildings, such as industrial warehouse, container house, prefab buildings.

LONG LIFE TIME

Rock wool sandwich panel is produced by the automatic production machine at a constant temperature, all the raw materials and process are in strict accordance with the international quality management system. which means the quality of the product is stable, can guarantee the life time of 25 years.
